RMStator Generator Stator Kit With Voltage Regulator Rectifier RM22431

Description

RMStator Generator Stator Kit With Voltage Regulator Rectifier RM22431

You save 15% off the items price combined, when buying a kit.

Brand new stator + voltage regulator rectifier kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• All product shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

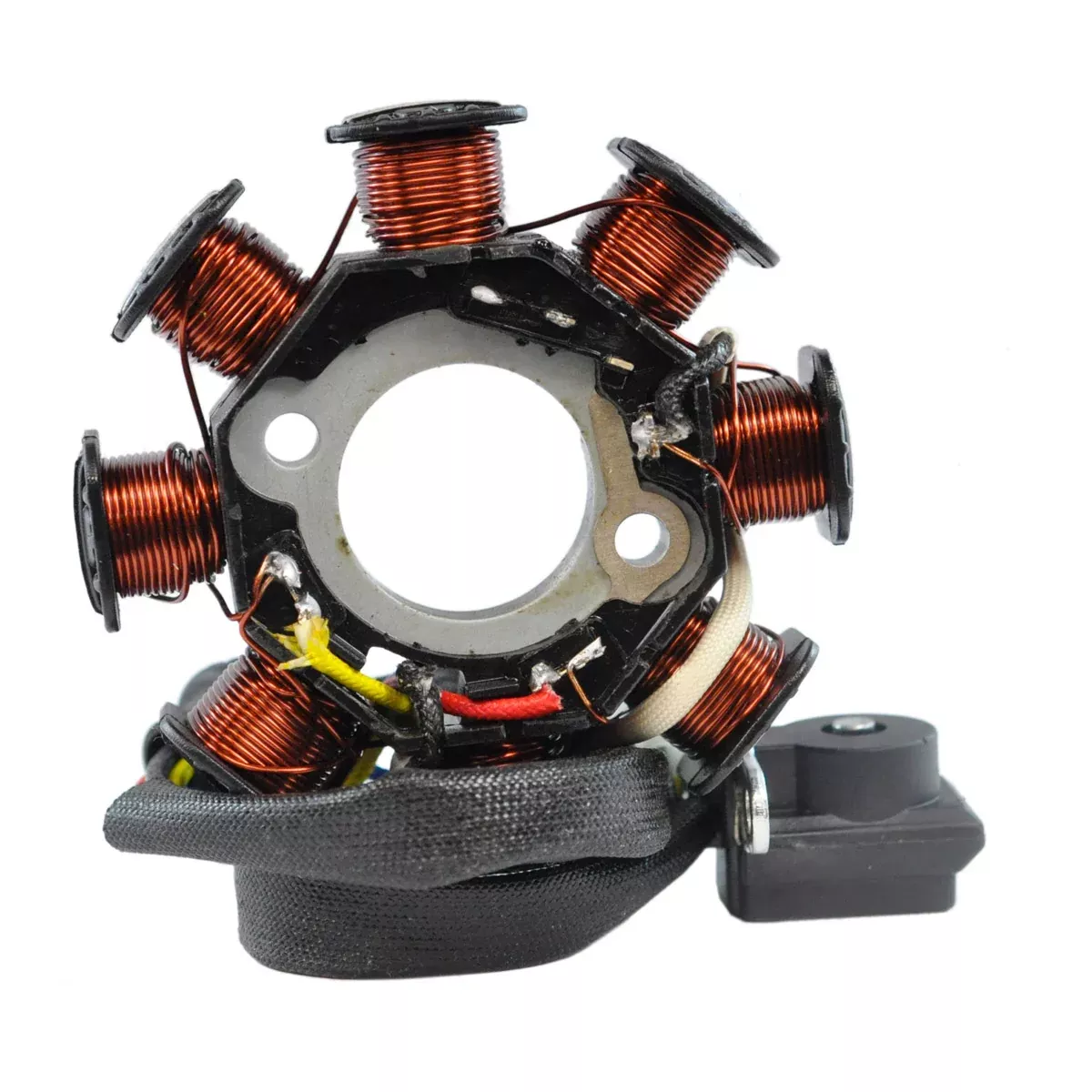

Stator

Brand new aftermarket stator

• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Voltage regulator rectifier

Brand new aftermarket voltage regulator rectifier

• No assembly required
• Connector included
• Higher grade of electric components.
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Technical Data

Stator
Dimensions :
Interior diameter : 28 mm
Exterior diameter : 102 mm
Thickness : 20 mm
Length of wires stator to terminal : 700 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : White between each White = 0.6 ohms +/-20%
Alternator : White To Ground = O.L

Voltage regulator rectifier
Dimensions :
Width : 80 mm
Length : 103 mm
Height : 32 mm
Fixation holes center to center : 75 mm

Other specifications :
Number of plugs : 1
Number of pins : 5

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22431

Fitment:

• 2001-2003 Suzuki GSXR600
• 2000-2003 Suzuki GSXR750

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
22431-R00
